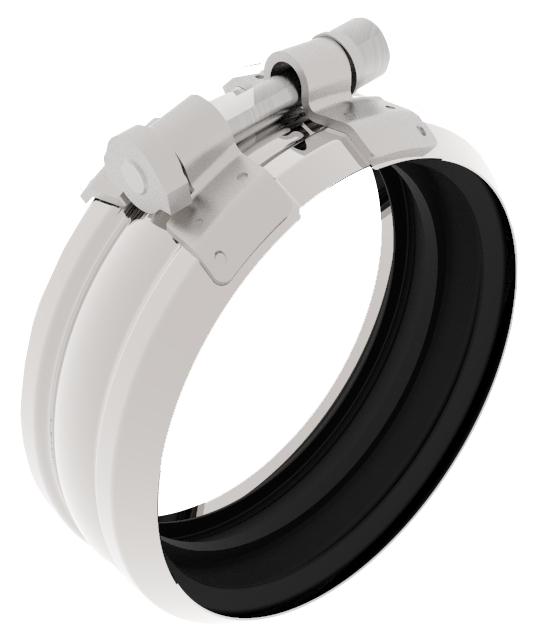

Coupling W2 PAM RAPID S - DN 75
Code article : 210426
Description
Connection between pipe ends and/or fittings and accessories from PAM Building, PAM Rapid S (W2) single-bolt couplings allow fast and reliable installation. It ensures optimized watertightness, pressure and corrosion resistance.PAM Rapid S (W2) couplings are recommended for most aerial networks inside or outside of the buildings, and for normal climate.EPDM gasket is suitable for most types of effluents.
Product variants
| Article number. | DN | DN | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 210424 | 50 | - | - | 70 | 80 | 42 | 0.10 |
| 210426 | 80 | - | - | 90 | 103 | 42 | 0.12 |
| 210427 | 100 | - | - | 125 | 139 | 48 | 0.18 |
| 210428 | 125 | - | - | 147 | 161 | 56 | 0.28 |
| 210429 | 150 | - | - | 172 | 187 | 56 | 0.32 |
| 210430 | 200 | - | - | 223 | 240 | 70 | 0.60 |
| 228759 | 250 | - | - | 290 | 315 | 95 | 1.10 |
| 228771 | 300 | - | - | 350 | 375 | 95 | 1.25 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
Connection between pipe ends and/or fittings and accessories from PAM Building, PAM Rapid S (W2) single-bolt couplings allow fast and reliable installation. It ensures optimized watertightness, pressure and corrosion resistance.PAM Rapid S (W2) couplings are recommended for most aerial networks inside or outside of the buildings, and for normal climate.EPDM gasket is suitable for most types of effluents.
Recommended use :
- Above ground
- Rainwater
- Domestic use
- Valve water
- Fat Wastewater
- Hot effluents
- Hydrocarbon Wastewater
- Runoff water
- Industrial Wastewater
Major benefits :
- This coupling ensures a maximum hydrostatic accidental pressure of 5 bar when fully restrained and 0.5 bar (5 m of water head) unrestrained.
- The maximum angular deflection supported between two assembled elements is 3°.
Technical infos
- Hot water resistance: 24h at 95°C.
- Thermal cycle resistance: 1500 cycles between 15°C and 93°C.
- Chemical resistance for 2 ≤ pH ≤ 12.
- Salt spray resistance internal coating: more than 1500 h
- Industry product standards : EN 877, GEG RAL-GZ 698
- Recycling Information : Fully recyclable
