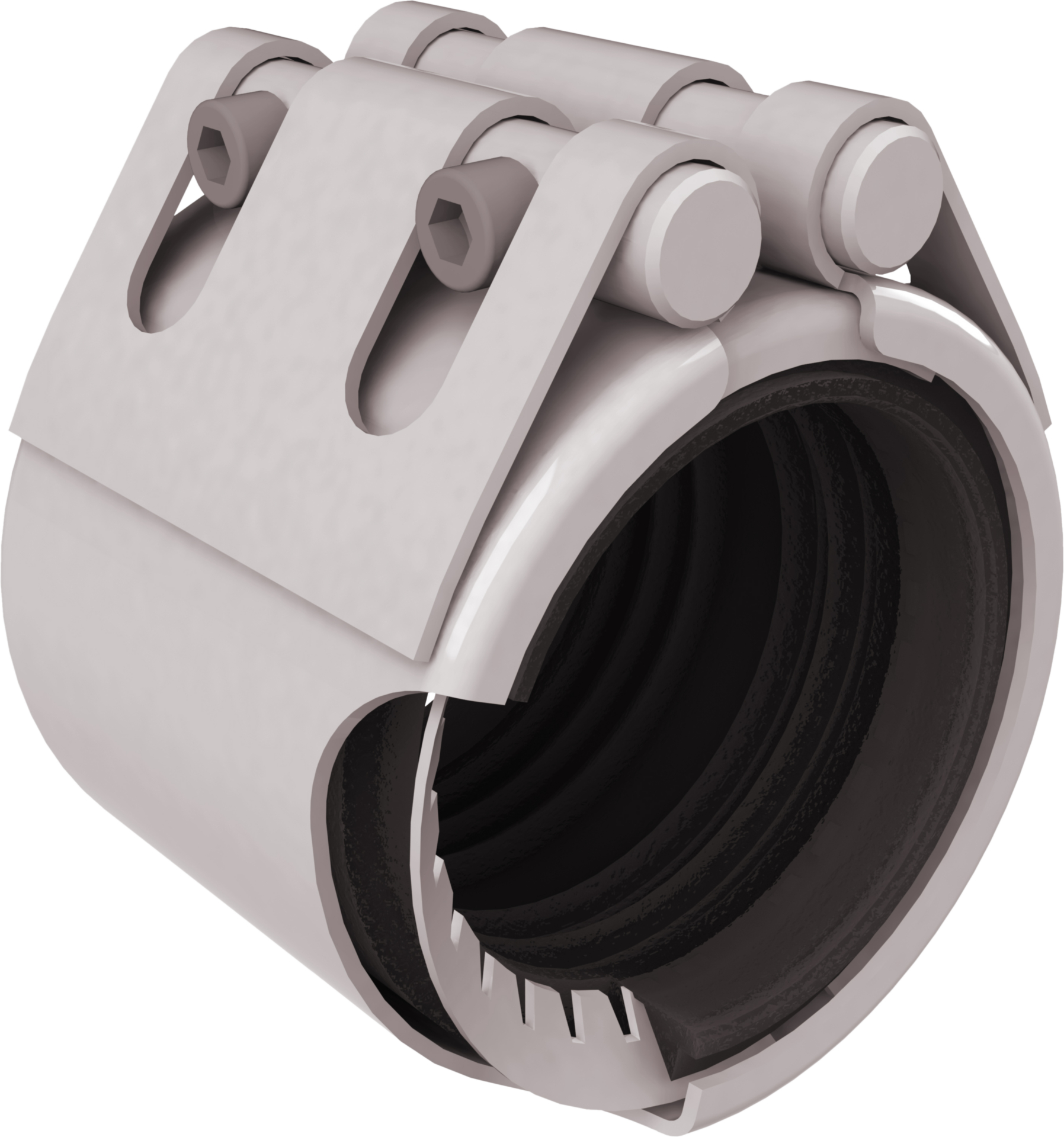

COUPLING HIGH PRESSURE - PAM HP GRIP-W5 - NBR - DN200
Code article : 278508
Description
Connection between pipe ends and/or fittings and accessories from PAM Building, PAM HP GRIP INOX (W5) couplings are used in sections where end thrust efforts have to be addressed. The autogrip couplings with built-in claw rings are alternative solutions for securing junctions whilst addressing pressure.
INOX (W5) couplings are recommended for networks where external stresses are high due to climate exposure such as pollution, condensation, or saline mist. EPDM gasket is suitable for most types of effluents, while NBR gasket is recommended for wastewater and runoff water liable to contain hot oil, solvents or hydrocarbons.
Product variants
| Article | DN | dn | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 278505 | 100 | - | - | 89 | 156 | 139 | 1,4 |
| 278506 | 125 | - | - | 114 | 192 | 166 | 2,6 |
| 278507 | 150 | - | - | 114 | 218 | 191 | 3,2 |
| 278508 | 200 | - | - | 114 | 269 | 241 | 5 |
| 278509 | 250 | - | - | 114 | 357 | 304 | 8.6 |
| 278510 | 300 | - | - | 114 | 410 | 357 | 10 |
| 278511 | 400 | - | - | 114 | 499 | 458 | 14 |
| 278512 | 500 | - | - | 114 | 602 | 561 | 16 |
| 278513 | 600 | - | - | 114 | 705 | 664 | 19 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
Connection between pipe ends and/or fittings and accessories from PAM Building, PAM HP GRIP INOX (W5) couplings are used in sections where end thrust efforts have to be addressed. The autogrip couplings with built-in claw rings are alternative solutions for securing junctions whilst addressing pressure.
INOX (W5) couplings are recommended for networks where external stresses are high due to climate exposure such as pollution, condensation, or saline mist. EPDM gasket is suitable for most types of effluents, while NBR gasket is recommended for wastewater and runoff water liable to contain hot oil, solvents or hydrocarbons.
Recommended use :
- Rainwater
- High pressure
- Wastewater
Major benefits :
- The PAM HP GRIP couplings are self-anchored couplings with built-in claw rings.
- The 2-in-1 solution: coupling and grip collar with only one product.
- Stainless steel W5 (AISI 316L) couplings are recommended for buried or aerial networks in aggressive environments such as seaside, bridges, etc...
Technical infos
- Pressure resistance according to EN 877 - DN 100 to 400: 10 bar / DN 500 to 600: 4 bar
- EPDM gasket: suitable for most projects
- NBR (nitrile) gasket: suitable for projects with effluents containing solvents or hydrocarbons
- Material :
- Screw: stainless steel 1.4404 / AISI 316L
- Casing: stainless steel 1.4404 / AISI 316L
- Reinforcing strip: stainless steel 1.4404 / AISI 316L
- Barrel: stainless steel 1.4401 / AISI 316
- Anchoring ring: stainless steel 1.4310 / AISI 301
- Gasket: EPDM or NBR
- Industry product standards : NF EN877
- Range Fire Classification :
- Acoustic Performance :
- Percentage of Recycled Content : %
- Recycling Information :
