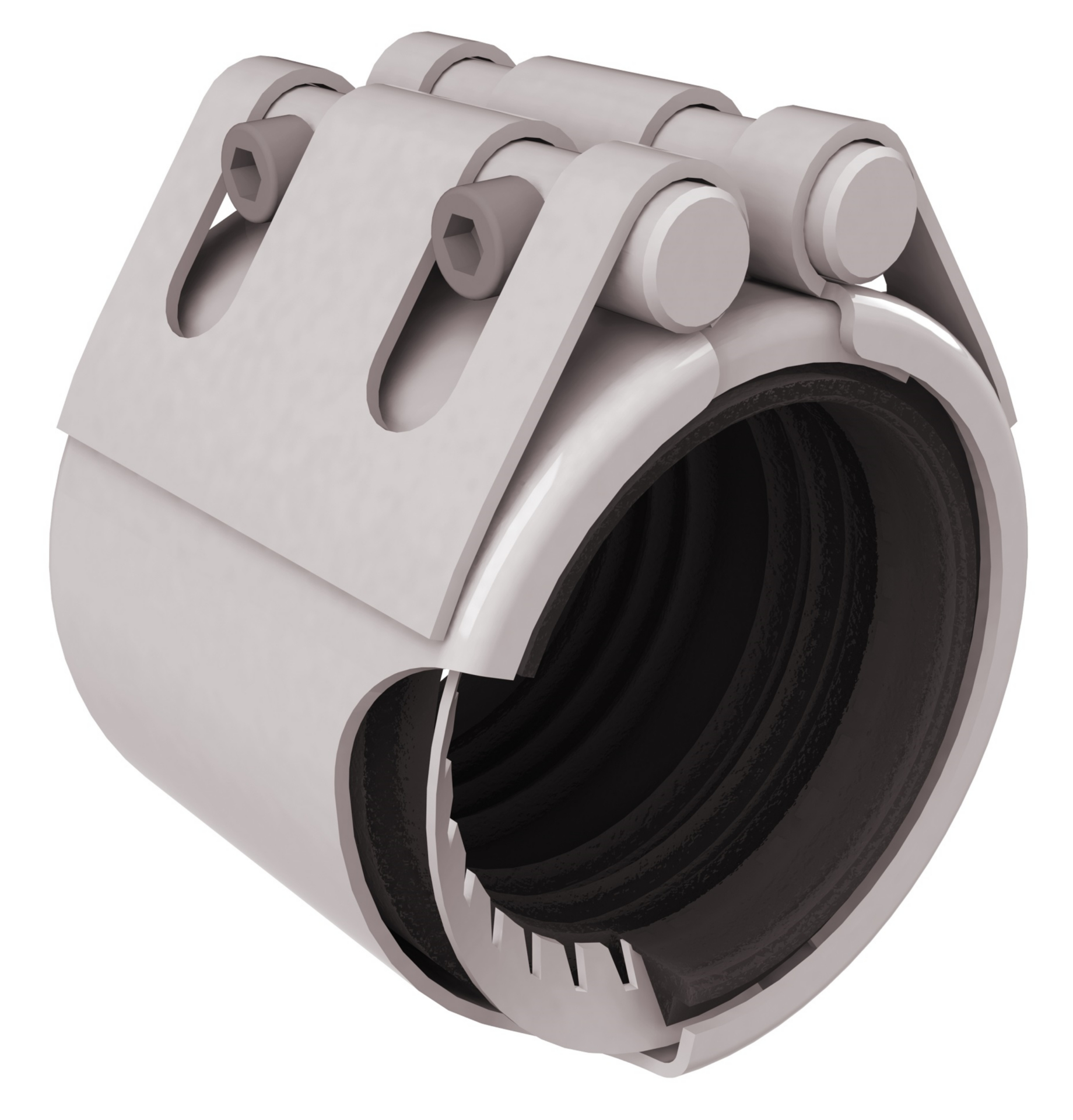

COUPLING HIGH PRESSURE - PAM HP GRIP-W4 - EPDM - DN100
Code article : 278460
Description
Connection between pipe ends and/or fittings and accessories from PAM Building, PAM HP GRIP S (W4) couplings are used in sections where end thrust efforts have to be addressed. The autogrip couplings with built-in claw rings are alternative…Read more
Product variants
| Article number. | DN | DN | Angle | Length | Height | Width | Weight |
|---|---|---|---|---|---|---|---|
| 278460 | 100 | - | - | 89 | 156 | 139 | 1.40 |
| 278461 | 125 | - | - | 114 | 192 | 166 | 2.60 |
| 278462 | 150 | - | - | 114 | 218 | 191 | 3.20 |
| 278463 | 200 | - | - | 114 | 269 | 241 | 5.00 |
| 278464 | 250 | - | - | 114 | 357 | 304 | 8.60 |
| 278465 | 300 | - | - | 114 | 410 | 357 | 10.00 |
All dimensions are in mm and nominal weights are in kg
Technical infos & product description
Product description
Connection between pipe ends and/or fittings and accessories from PAM Building, PAM HP GRIP S (W4) couplings are used in sections where end thrust efforts have to be addressed. The autogrip couplings with built-in claw rings are alternative solutions for securing junctions whilst addressing pressure.PAM HP GRIP S (W4) couplings are the most common for HP couplings, they are recommended for inside or outside of the buildings, and for non-aggressive environment.EPDM gasket is suitable for most types of effluents, while NBR gasket is recommended for wastewater and runoff water liable to contain hot oil, solvents or hydrocarbons.
Recommended use :
- Rainwater
- Domestic use
- Valve water
Major benefits :
- The PAM HP GRIP Couplings are self-anchored Couplings with built-in claw rings.
- The 2-in-1 solution: coupling and grip collar with only one product.
- Stainless steel W5 (AISI 316L) couplings are recommended for buried or aerial networks in aggressive environments such as seaside, bridges, etc...
Technical infos
- Pressure resistance according to EN 877 - DN 100 to 400: 10 bar / DN 500 to 600: 4 bar.
- EPDM gasket: suitable for most projects.
- NBR (nitrile) gasket: suitable for projects with effluents containing solvents or hydrocarbons
- Industry product standards : EN 877
